Rack Mounted RF Power Amplifier Module 5.6G-6G ISO9000 Certificated

  • 1
  • 2

Brand Name : PTC

Model Number : HPA200W

Certification : ISO 9000

Place of Origin : Shenzhen China

MOQ : 1set

Price : Contact Us

Payment Terms : T/T, Western Union

Supply Ability : 500000

Delivery Time : 10-20days

Packaging Details : Carton

Model NO. : PTC-HPA200W

Frequencies : 5.6-6GHz

Output Power : 200W

Dimension : 620 x 480 x 53mm

Class : AB Linear

Rack Size : 19'Standard Rack & 6U Height

Contact Now

19" Standard Rack Mounted 5.6g-6g High Power 200W RF Power Amplifier Module



Product Description

PTC-HPA200W is a  Solid State High Power Amplifier, we customized all Amplifiers as per each client's request, this model with Ultra-wide bandwidth and high power output for option. This model designed with 19'Standard Rack & 6U Height.



Product Parameters

ELECTRICAL SPECIFICATIONS: 50, 25°C

Parameter   Specification   Notes
Operating Frequency Range   5700- 5800 MHz
Power Output @ Saturation   300 Watt Typ   CW
Power Output @ P1dB   200 Watt Min
Power Gain     54 dB Min   Pin=0dBm for normal operation
Power Gain Flatness   1.5-2 dB p-p Max   Constant input power
Pulse Characteristics Width   Duty   PRF
100 nS

Input Return Loss     -10 dB Max   Relative to 50 Ohm
2-Tone Intermodulation (IMD)     -30 dBc Typ   44dBm/Tone,  = 1MHz
Noise Figure     <20 dB
Harmonics   <-25 dBc Typ   At rated output power
Spurious   -60 dBc Max   Non-harmonics
Operating Voltage   100V-AC
Power Consumption   1500 Watt Max   At rated Pout
Input Power Protection   +20 dBm Max   <10 Sec without damage
Load VSWR Protection     5 : 1 Max   <1 minute at rated Pout

ENVIRONMENTAL CHARACTERISTICS

Parameter   Specification   Notes
Operating Ambient Temperature     -20 to +55°C
Storage Temperature   -40 to +85 °C
Relative Humidity     5 to 95 %   Non-condensing

MECHANICAL SPECIFICATIONS

Parameter   Specification   Notes
Dimensions W x H x D   620×480×530mm   5U - Excluding handles
Weight     25 Kg
RF Connectors In / Out   Type-N Female   Front or rear panel
AC Power / Interface IEC 60320-C14 / 9-Pin D-Sub Or equivalent
Cooling   Built in Fan Cooling   Variable speed
OPTIONAL: Digital Monitor & Control: Ethernet RJ-45 TCP/IP, RS422/485, USB Optional
FWD, REV, VSWR, GAIN, ALC, V & I, TEMP Optional GPIB Interface   Remote Bluetooth application



Product Advantages

Class A/AB linear GaN design
Rack mounted system
Instantaneous wide bandwidth
Suitable for broadband EMI/RFI, Lab, Comm., and EW applications
Suitable for pulse and all single channel modulation standards
Built-in protection circuits
High reliability and ruggedness for mobile applications
System control supports Ethernet Software remote control



Detailed Photos

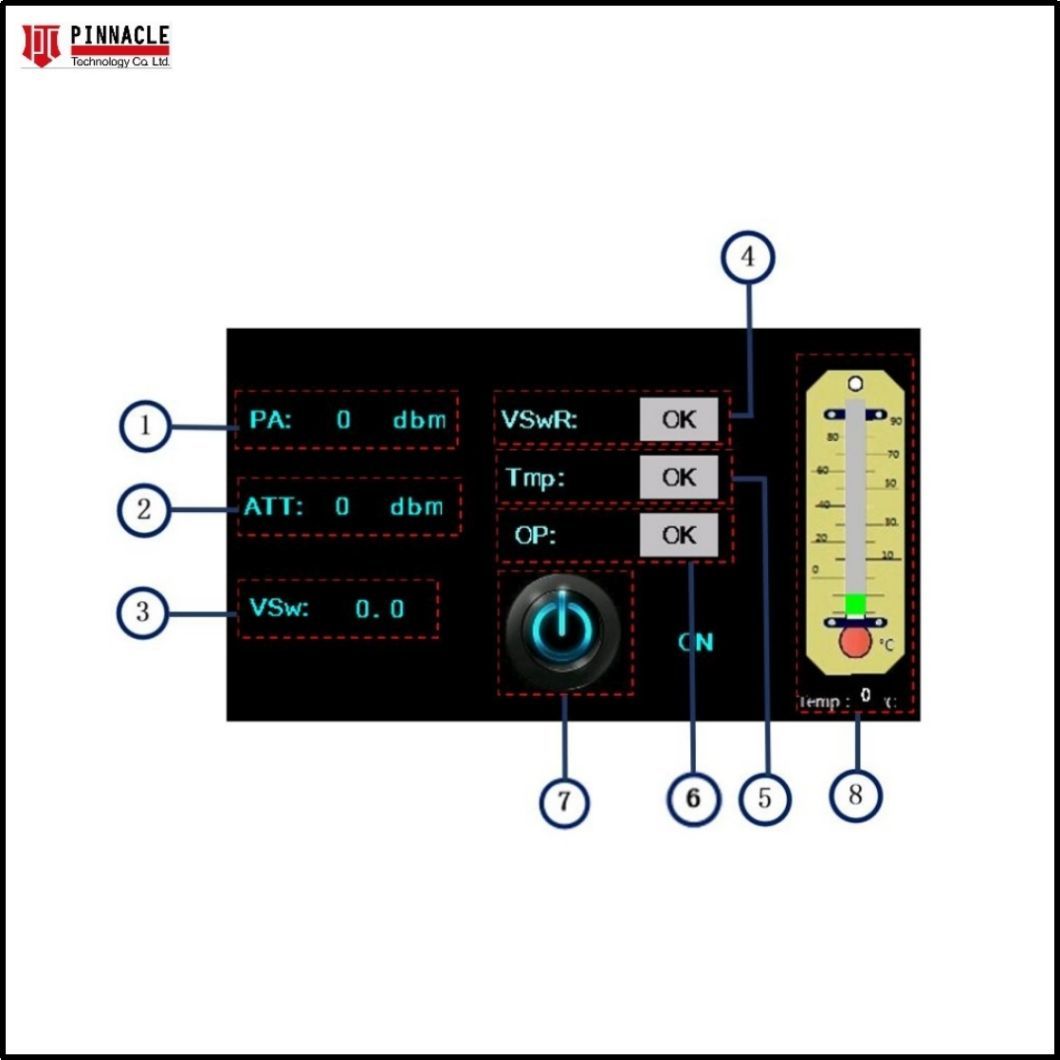

Touchscreen

Rack Mounted RF Power Amplifier Module 5.6G-6G ISO9000 Certificated
1. PA:current RF Output Power display;
2. ATT:Set and display the current attenuation value
            (0-30d
B range);
3.  VSW:Display the current output standing wave
              parameters of the
module;
4. VSWR:Standing wave status;
5. Tmp:System temperature status;
6. OP:RF Output Power Status;
7. RF Output Control Switch:Press the switch to turn on the switch and the switch changed as blue color, changed to white color after pressed again to turn off the switch;
8. Temp:display the current system temperature;



ATT Value Input Interface


Click [ATT] to show the above interface then input the value of ATT from 0 to 30 then click [confirm].

Rack Mounted RF Power Amplifier Module 5.6G-6G ISO9000 Certificated



Rack Mounted RF Power Amplifier Module 5.6G-6G ISO9000 Certificated
Rack Mounted RF Power Amplifier Module 5.6G-6G ISO9000 Certificated
